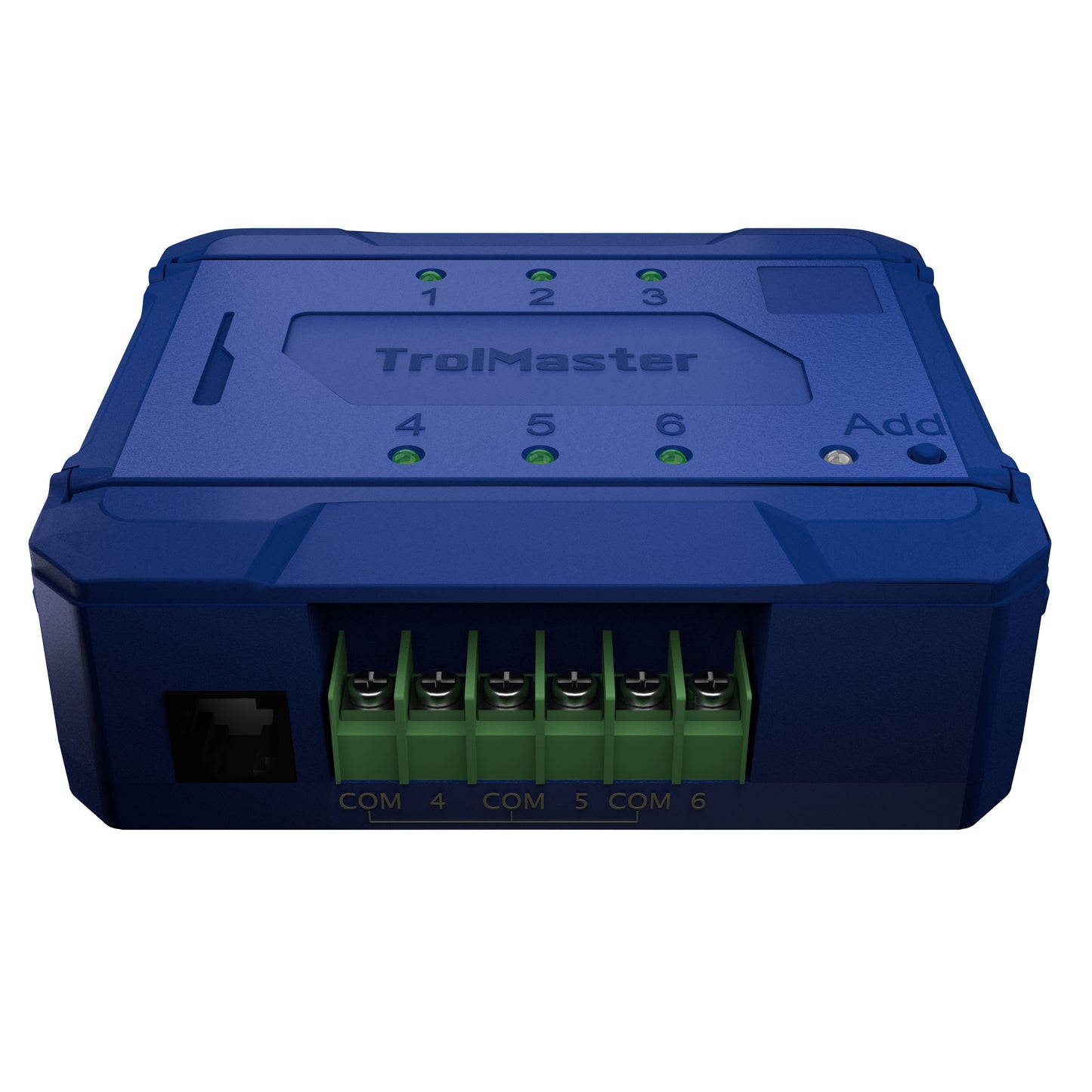

TrolMaster Aqua-X Control Board, 24V

TrolMaster Aqua-X Control Board, 24V

Regular price $95.00
Regular price $120.00 Sale price $95.00
Sale Sold out
Shipping calculated at checkout.
  • Ships Fast

Aqua-X 24V Control Board (OA6-24)

The OA6-24 control board is designed to control multiple 24vac solenoid valves.

It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.

Package Contents:

  • 24V Control Board
  • 16ft RJ12 Cable

Features:

  • LED Power Indicator
  • Addressing Button
  • 6 Individually-Controlled 24V Outputs
  • Individual LED Indicator for Each Output
  • Double RJ12 Cable Sockets for Daisy Chain Connectivity

Specifications:

  • Input Voltage: 110-240 VAC
  • Max Input Current: 0.2A
  • Max Output Voltage/Current: 24VAC/0.2A per output
  • Working Environments: Temperature 32°-122°F, Humidity <90%
  • Packaging Dimensions: 275mm(L) x 164mm(W) x 40mm(H)
